138kg Capacity Push Pull Type Toggle Clamp

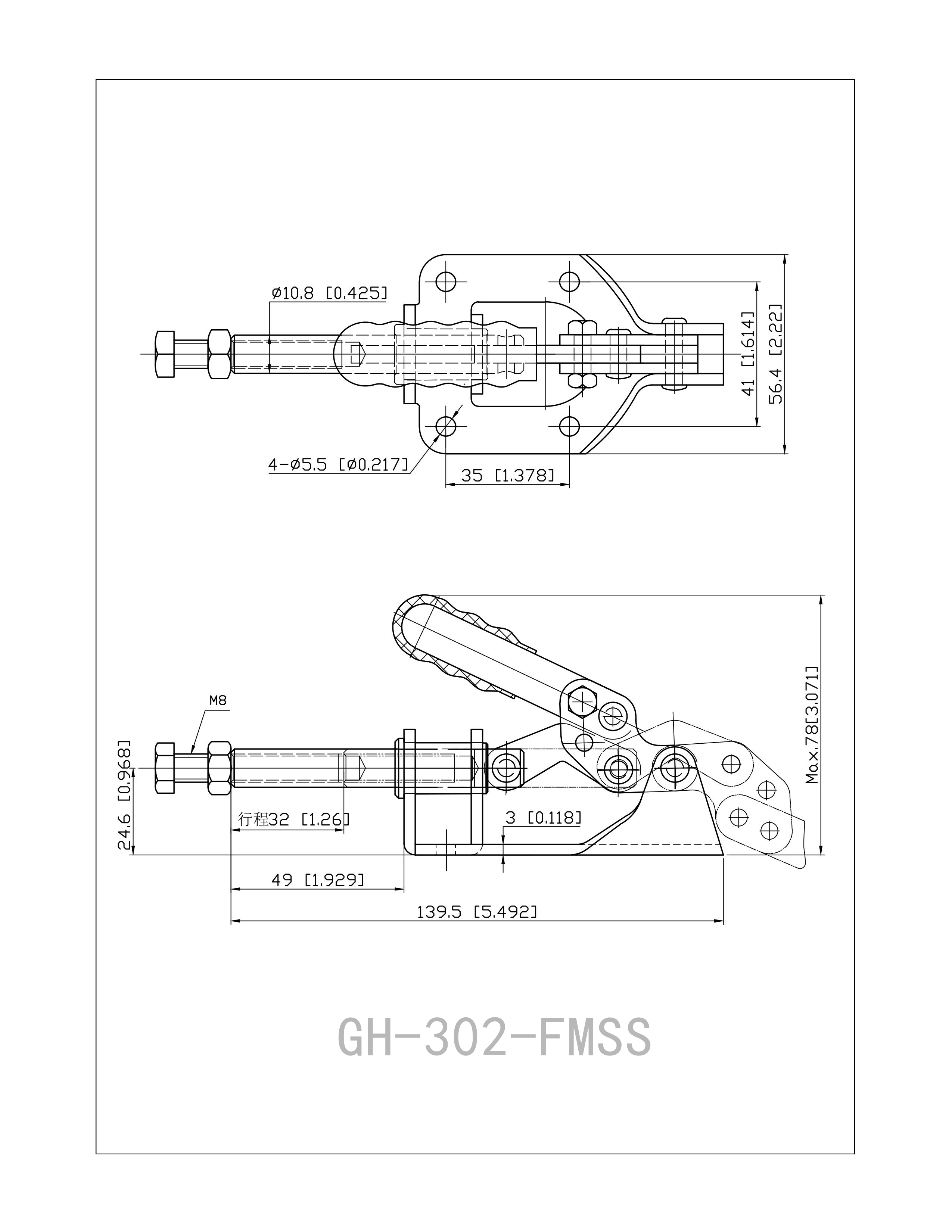

Stainless Steel Manual Quick Release Straight Line Push Pull Toggle Clamp 302-FMSS

Push and Pull Type Hold Down Handle Toggle Clamp Destaco 605 / GH-302-FMSS

Features:
Quick release, medium holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry
1. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 302-FMSS, 201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
2. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
3. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
4. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
10. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly.
Main application models: 201,201-A,201-B,101-A etc.

Electronics Industry

1. All electronic products- such as televisions, radios, DVD, electronic doorbells, and computers, etc., are all with circuit boards which are composed of PCB boards and electronic components inserted and attached to them. There are two ways to insert and attach electronic components to PCB boards:
(1) Automatic, SMT using products, AI automatic equipment to insert and attach electronic components; this method does not require a manual toggle clamp.
(2) Assembly line, divided into the card slot type and ring type. A manual toggle clamp is generally used in the ring-type assembly line of inserting and attaching electronic components on PCB boards, which is used to fix PCB boards. No manual toggle clamp is needed in the card slot type production line. Main application models: 101-A,20400,201,201-A,20100,22005,20800,20300,22100 etc.
2. No matter which way the circuit board is manufactured in point "5-1," manual toggle clamps are used on "test jigs" for "online testing" and "testing line." Main application models: 302-FMSS, 101-A,201,10250,10250-U,304,305 series etc.
3. In the production of various electronic products, equipment, and electrical wiring harness for household appliances, manual toggle clamps are used in the inspection process, and in some factories, manual toggle clamps are used in the assembly process for "test fixtures" and " assembly fixtures." Main application models: 13005,101-A,13009,201,201-A,20800,36070 etc.
