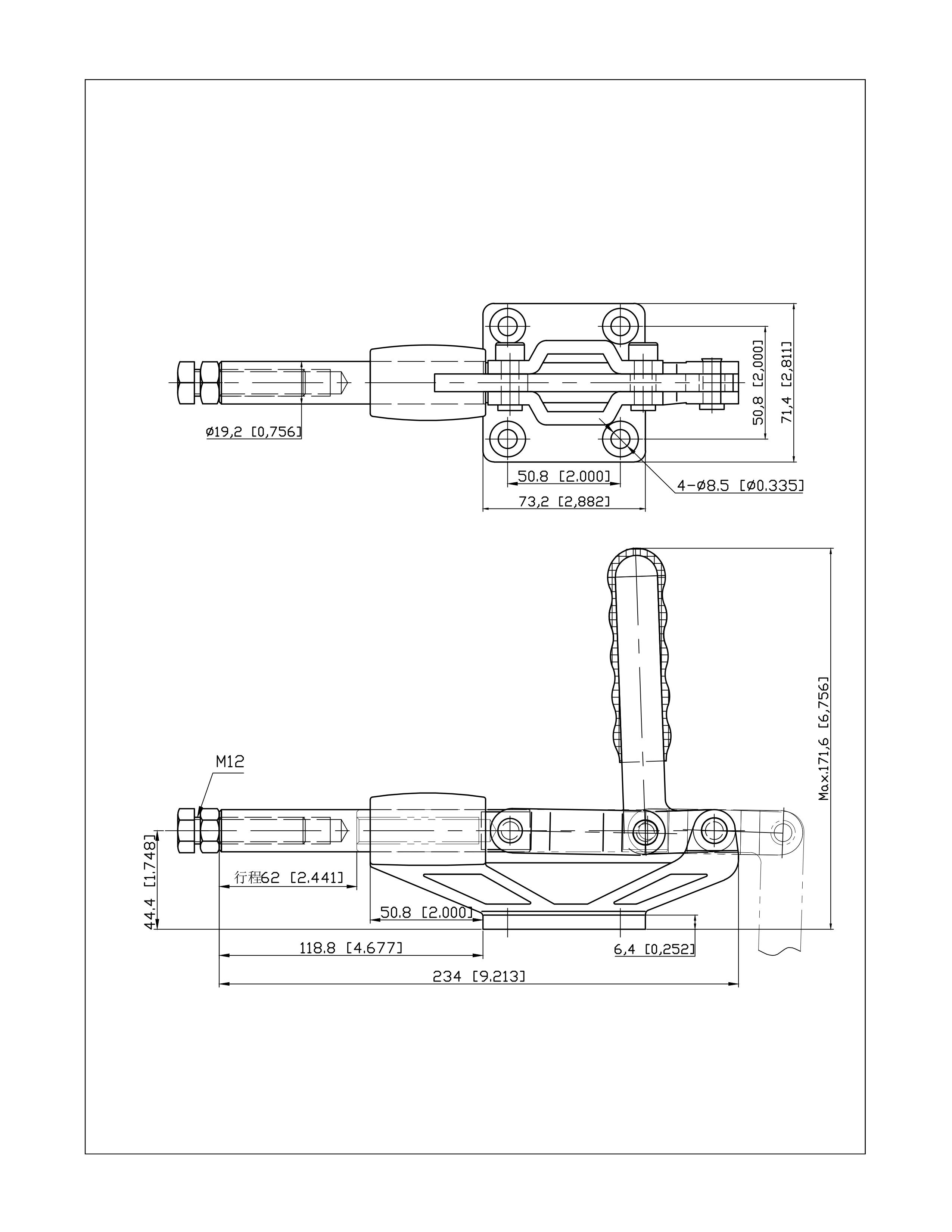

680kg Push Pull Type Toggle Clamp

Heavy Duty Quick Release Push Pull Toggle Clamp Used as Welding Jigs GH-305-HM

Push and Pull Type Hold Down Handle Toggle Clamp Straight Line Action GH-305-HM

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Electronics Industry

1. Electronic toys, game consoles and IC cards.

2. The production of weighing sensors uses manual toggle clamps, with process locations unknown.

3. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 305-HM, 30600HL,30600PR,31200HL,31200PR.

4. For the production of electronic components such as filters and amplifiers, manual toggle clamps are used on test equipment and test jigs.
Main application models: 101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.

5. A manual toggle clamp is used as fittings in electronic production equipment, such as crest welders, reflow soldering machines, DDC machines, reflow ovens, stretching machines, and screen printing machines.
Main application models: 305-HM, 101-A,102-B,40341,80325 etc.

6. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.

7. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture.

Main application models: 11412,203-F,225-D,21502-B,102-B,101-D

8. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

9. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.

10. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Automobile Industry

1. In the production of partially refitted auto bodies, the manual toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.

2. Manual toggle clamps are used for local spot welding during assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.

3. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs. Main application models: 702-D,10247,12265,11412 etc.

2) For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.

3) For the adhesion of super-luxury bus and minibus interior accessories, manual toggle clamps are used for adhesion and fixation between interior accessories and auto bodies. Main application models: 305-HM, F clamps.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.

680kg Push Pull Type Toggle Clamp

680kg Push Pull Toggle Clamp

680kg Toggle Clamp

680kg Push Pull Type Toggle Clamp Images
