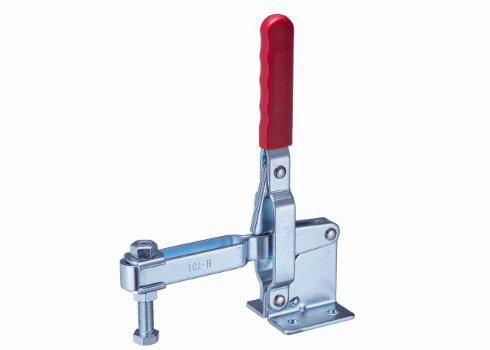

1220g Weight 900lbs Big Duty Vertical Handle Toggle Clamp

900lbs Big Duty Vertical Handle Toggle Clamp Use for Welding Metal Parts GH-101-H

Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-101-H

Features:

Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry

1. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.

2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.

4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.

2. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.

3. In the production of partially refitted auto bodies, the manual toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.

4. Manual toggle clamps are used for local spot welding during assembly in small and medium sized automobile plants.
in application models: Toggle Pliers.

5. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.

2) For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.

3) For the adhesion of super-luxury bus and minibus interior accessories, manual toggle clamps are used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Electronics Industry

1. All electronic products- such as televisions, radios, DVD, electronic doorbells, and computers, etc., are all with circuit boards which are composed of PCB boards and electronic components inserted and attached to them. There are two ways to insert and attach electronic components to PCB boards:

(1) Automatic, SMT using products, AI automatic equipment to insert and attach electronic components; this method does not require a manual toggle clamp.

(2) Assembly line, divided into the card slot type and ring type. A manual toggle clamp is generally used in the ring-type assembly line of inserting and attaching electronic components on PCB boards, which is used to fix PCB boards. No manual toggle clamp is needed in the card slot type production line.
Main application models: 101-A,20400,201,201-A,20100,22005,20800,20300,22100 etc.

2. No matter which way the circuit board is manufactured in point, manual toggle clamps are used on "test jigs" for "online testing" and "testing line."
Main application models: 101-A,201,10250,10250-U,304,305 series etc.

3. In the production of various electronic products, equipment, and electrical wiring harness for household appliances, manual toggle clamps are used in the inspection process, and in some factories, manual toggle clamps are used in the assembly process for "test fixtures" and " assembly fixtures."
Main application models: 13005,101-A,13009,201,201-A,20800,36070 etc.

4. For the production of electronic components such as filters and amplifiers, manual toggle clamps are used on test equipment and test jigs.
Main application models: 101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.

5. A manual toggle clamp is used as fittings in electronic production equipment, such as crest welders, reflow soldering machines, DDC machines, reflow ovens, stretching machines, and screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.
