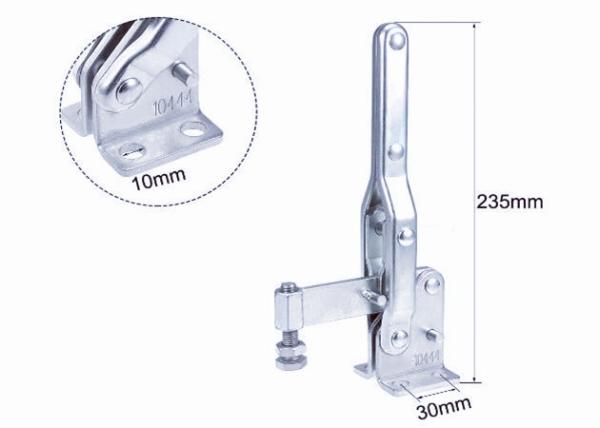

Fixed Steel Spindle Vertical Handle Toggle Clamp Use In Shoemaking Insutry GH-10444
Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-10444
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

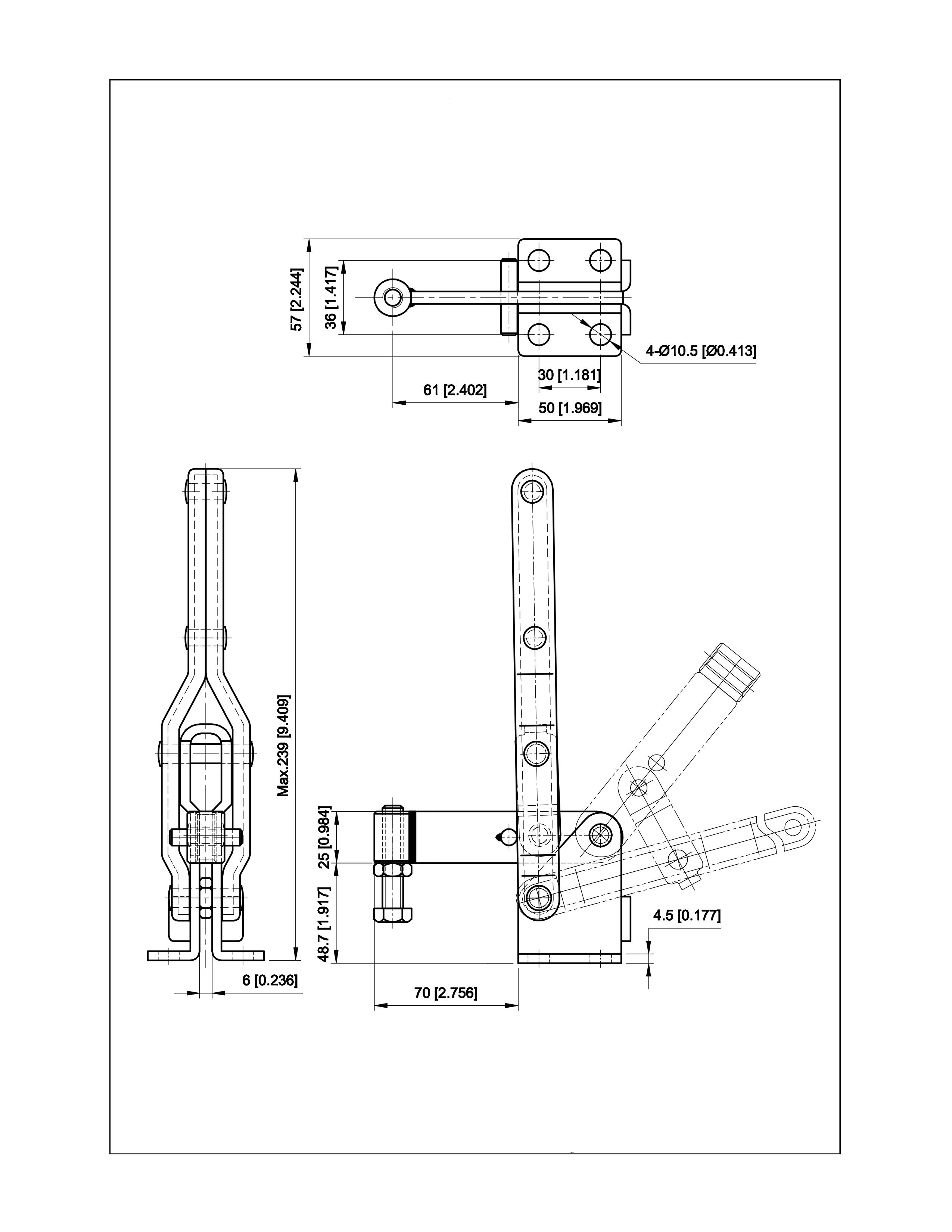

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 870 | 400 | 129 | 76 | GH-FC-38200 |
Shoemaking Industry
It refers to the PU sole produced by PU foaming mode, and manual toggle clamps are used as a fixture in PU foaming molds for sole manufacture. Main application models: 10444,10448.
Note: Manual toggle clamps can be used for all products or parts that are produced with PU foaming methods and have the characteristics of continuous mass production.
Note: PU has been widely used in military, sports, construction and daily necessities. Manual toggle clamps can be used for products produced with PU foaming methods
Automobile Industry
1. Welding of various car seats is used as positioning bolts and fixtures for welding fittings. Main application models: 11412,12265,102-B,36020,303-E etc.
2. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
3. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 10444,11412,10247,12305,22175,25382,36020,303-E,305-H etc.
4. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
5. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 201,201-A,201-B,101-A etc.
6. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
Aircraft Manufacturing Industry
1. In the production of body keels, the manual toggle clamp is used in "welding molds". The main types of use vary from factory to factory.
2. For the riveting of outer metal sheets and gluing of inner accessories, manual toggle clamps are used as a fixture.
Main application models: F clamps.
Machinery Manufacturing Industry
For the production of modular machine tools, machining centers and other machine tool equipment on its workbench or in the conversion mechanism, manual toggle clamps can be used as fixtures and change-over gears
Main application models: Push Pull Toggle Clamps.
Machining Industry
Manual toggle clamps can be used to replace the old stationary fixture on the workbench of the milling machine, slotting machine, drilling machine, boring machine, modular machine tool, machining center, CNC (various) machine tools, and other mechanical processing equipment process mechanical parts. Main application models: Push-Pull Toggle Clamps.,Heavy Duty Weldable Toggle Clamps.
Other Industries
In addition to the above-mentioned industries, manual toggle clamps have been widely used in military industry, stylistic industry, office supplies manufacturing industry, medical equipment, and equipment manufacturing industry, drinking machinery and supplies manufacturing industry, power equipment manufacturing industry, bridge, highway equipment, and facilities manufacturing industry, tooling manufacturing industry, environmental protection, firefighting equipment, and facilities manufacturing industry, communication equipment and equipment manufacturing industry, decoration, installation industry, and high-tech fields.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |
| Model | GH-10444 / 10448-Z / 10448-ZH |
| Bar Type | Solid Loing |
| Base Type | Flanged |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Holding Force (LBS) | 800 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Nickle Plated; Tumbled; Polished; Black Oxide; |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $2USD |
| Stock Status: (PCS) | 600 |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
