Big Duty Vertical Handle Toggle Clamp Use For Welding and Testing Moulds GH-101-E
Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-101-E
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

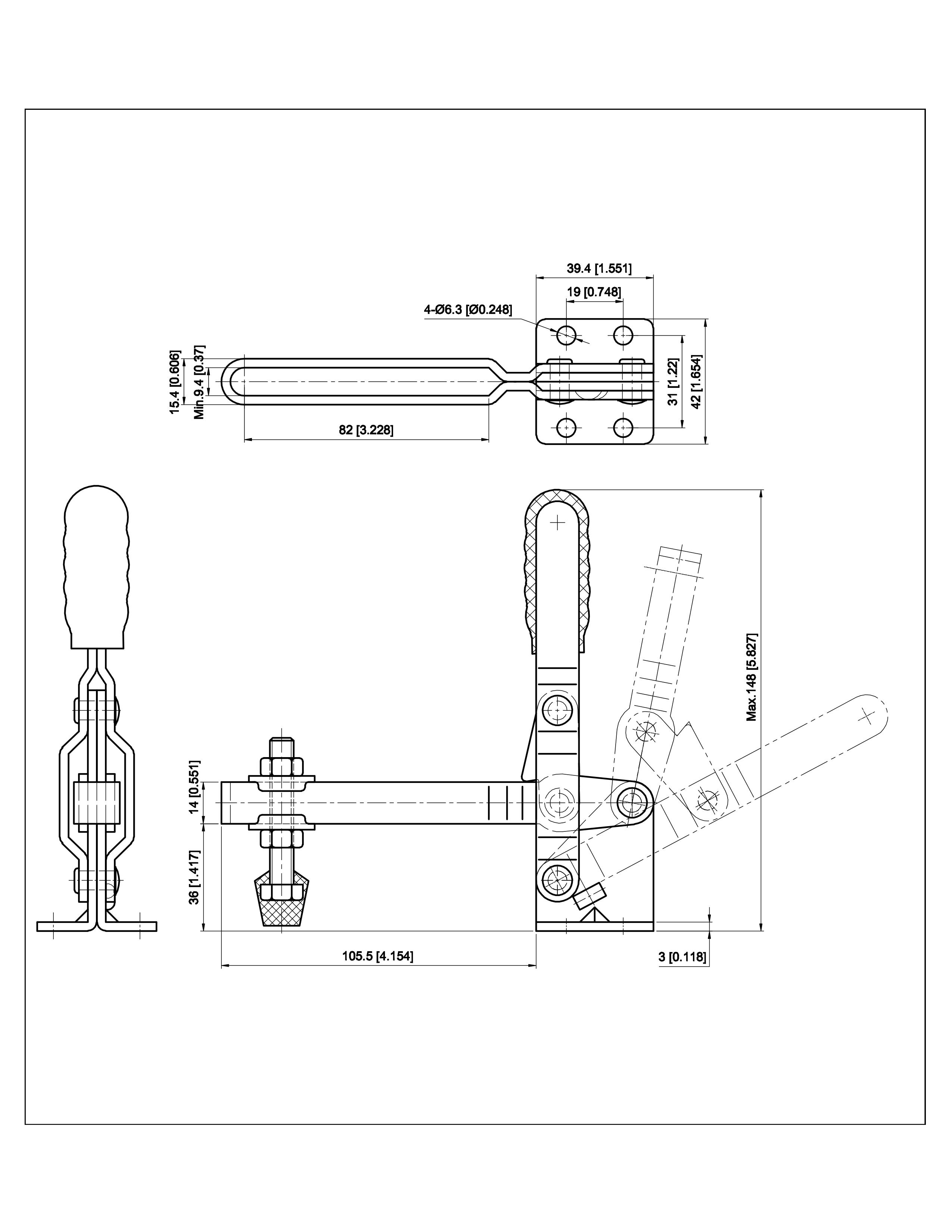

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 330 | 180 | 100 | 60 | GH-FC-56212 |
Automobile Industry
1. Welding of various car seats is used as positioning bolts and fixtures for welding fittings. Main application models: 101-E,11412,12265,102-B,36020,303-E etc.
2. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
3. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.
4. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
5. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 201,201-A,201-B,101-A etc.
6. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
Electronics Industry
1. Electronic toys, game consoles and IC cards.
2. The production of weighing sensors uses manual toggle clamps, with process locations unknown.
3. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.
4. In manufacturing batteries (mainly cell phone batteries or stacked cell battery blocks like cell phone batteries, such as laptop batteries; other batteries will also be used, but in small quantities), manual toggle clamps are used in:
(1) the semi-finished electric cores produced are assembled into battery blocks and used in the "assembly fixture" on the assembly line,
Main application models: 101-E,101-A,102-B,22100,201-B,36204 etc.
(2) the comprehensive performance of the battery block is tested and used in the "test jig." Main application models: 101-A,201,20400,20800.
5. In the manufacture of mobile phones (or similar products), manual toggle clamps are used in the:
(1) production of circuit boards.
(2) mobile phone comprehensive performance test. When the mobile phone is assembled without batteries, the comprehensive performance of the mobile phone is tested, with the fixture used in the "test jig." Main application models: 101-A,101-B.
Note: Manual toggle clamps can be used for all products or parts that are similar to the above points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.
| Brand | JOINTECH |
| Model | GH-101-E / 101-EI |
| Bar Type | U Bar |
| Base Type | Flanged / Straight Base |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 380 |
| Spindle Standard | mm/inch |
| Material | Metal; |
| Surface Treatment | Zinc Plated; |
| Finish | Silver; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $1.3USD |
| Stock Status: (PCS) | 1500 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Air |
Product Tags:
|
|

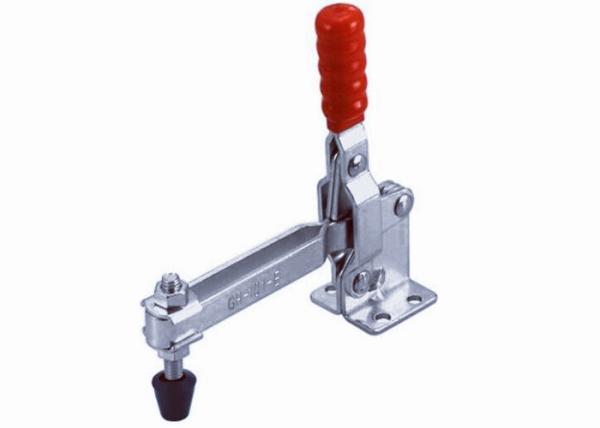

Big Duty 180kg Carbon Steel Vertical Handle Toggle Clamp Images
|
