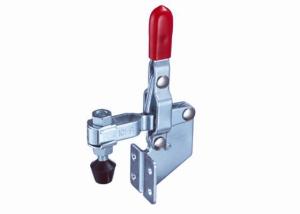

Side Mount Small Clamping Duty Vertical Handle Toggle Clamp For Jig Fixture GH-101-B
Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-101-B
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 135 | 100 | 90 | 65 | GH-FC-14134 |
Automobile Industry
1. Welding of various car seats is used as positioning bolts and fixtures for welding fittings. Main application models: 101B,11412,12265,102-B,36020,303-E etc.
2. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
3. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.
4. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
5. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 201,201-A,201-B,101-A etc.
6. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 101B,201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
Railway Vehicle Industry (including subways and light rail vehicles)
1. Body keel welding is used as fixtures for welding molds.
Main application models: 101B,101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.
2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.
3. Welding of door panels is used as positioning bolts and fixtures for welding jigs. Main application models: 11412,12205,10247,225-D,21382,304-C,304-E etc.
4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.
5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.
6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |
| Model | GH-101-B |
| Bar Type | U Bar |
| Base Type | Flanged Side Mount |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 200 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Tumbled; Polished;Black Oxide; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Sample Request | F.O.C. / $1.5USD |
| Stock Status: (PCS) | 2700 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
Product Tags:
|
|
Side Mount Small Duty 100kg Vertical Handle Toggle Clamp Images
|
