60LBS Holding Force U Bar Vertical Handle Toggle Clamp

Brand Name : Jointech

Model Number : GH-13009

Place of Origin : China

MOQ : 1-100 PCS

Price : Negotiable

Payment Terms : T/T; L/C; Western Union; Paypal

Supply Ability : 200000 PCS / Month

Delivery Time : 1-60 Days

Packaging Details : PE Bag and Paper Carton

Certification : ISO9001:2015

Usage : Small Duty Clamping

Material : Iron / SUS201 / 304 / 316

Structure : Mini Toggle Clamp

Type : Vertical U Bar

Application : Jigs and Drilling Machine

Base : Flanged / Straight

Clamping Type : Small Duty

FOB Port : Guangdong

Contact Now

Small Duty Vertical Handle Toggle Clamp Used For Jigs and Drilling Machine GH-13009

Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-13009

Quick release, small holding capacity

Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

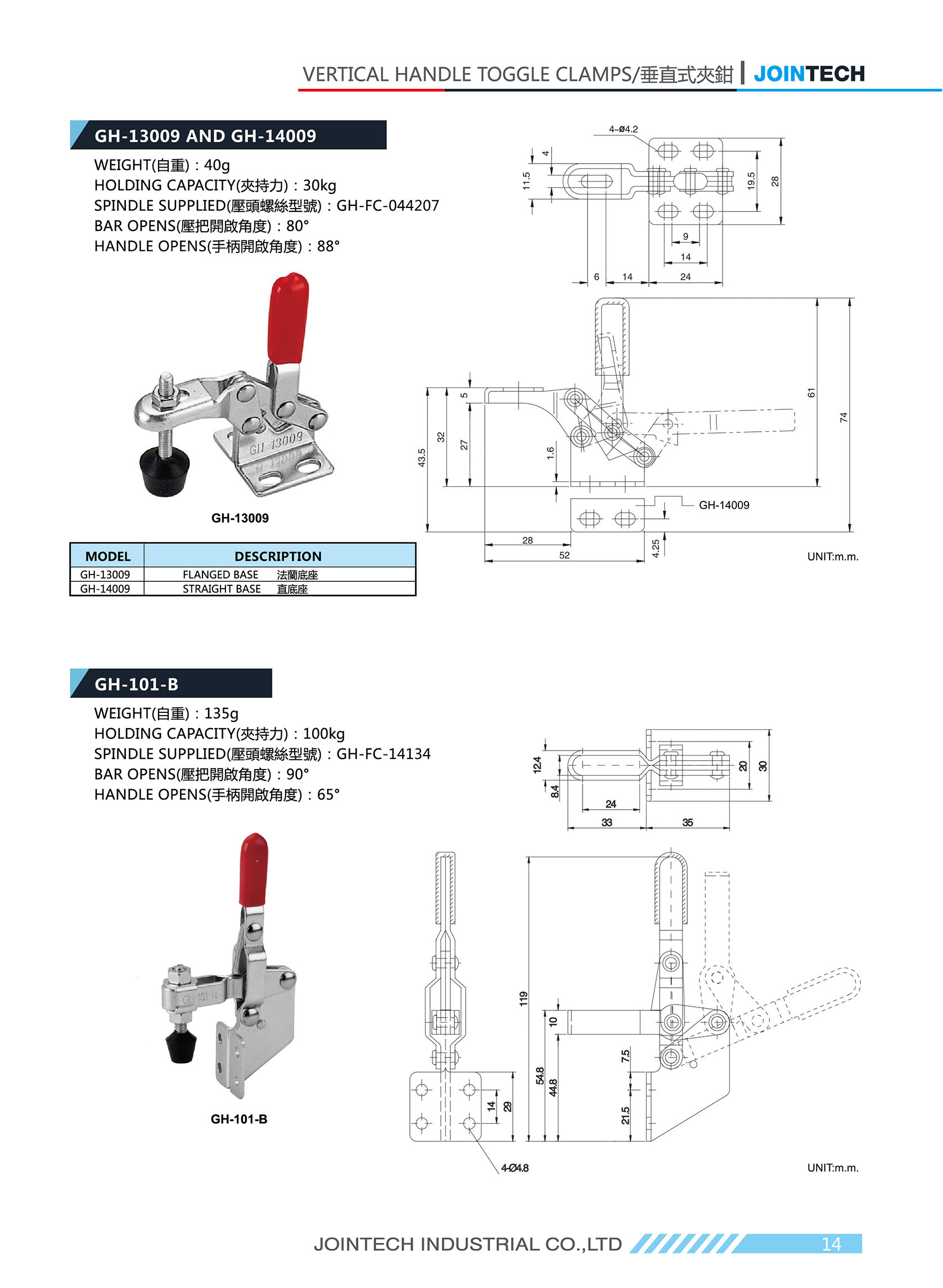

Weight (g) Holding Capacity (kg) Bar Opens (º) Handle Opens (º) Spindle Supplied
40 30 80 88 GH-FC-044207

Automobile Industry

1. Welding of various car seats is used as positioning bolts and fixtures for welding fittings. Main application models: 11412,12265,102-B,36020,303-E etc.

2. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.

3. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.

4. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.

5. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 201,201-A,201-B,101-A etc.

Motorcycle Industry


1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.

2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.

3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.

4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts that are similar to the above three points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Vertical Toggle Clamp


The vertical toggle handle stands straight when locked. It is designed with various holding capacities. It can apply a considerable amount of pressure. Every time you pull the handle away from the tool, you can lift the securing bar and place an object under the bar. As the handle moves into vertical alignment, the pressure is applied. Not only is it safe for a worktable, but it isalso used to secure wood around machinery.

Q'TY PCS 1-100 101-500 501-1000 1001-2000 2001-5000 5000+
EST.DAYS 1-3 3-5 5-7 7-15 15-25 25-35
Brand JOINTECH
Model GH-13009 / 14009
Bar Type Fixed Bar
Base Type Flanged / Straight
Handle Type Straight
Clamping Type Vertical
Operation Type Hold Down Quick Clamping
Standard / Non Standard
Holding Force (LBS) 60
Spindle Standard mm/inch
Material Metal; SUS#201; SUS#304; SUS#316;
Surface Treatment Zinc Plated; Nickled Plated; Tumbled; Polished;Black Oxide;
Finish Silver; Natural; Red / Blue / Black / Orange Dipped Grip;
Design OEM & ODM
Price Term Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP;
Payment Term T/T; L/C; Western Union; Visa; MoneyGram; Paypal;
Sample Request F.O.C. / $1USD
Stock Status: (PCS) 5000
Package Method PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs;
Pallet Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy;
Shipment Method Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS

60LBS Holding Force U Bar Vertical Handle Toggle Clamp
