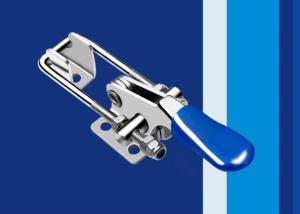

163kg Solid Wood Blue Handle Latch Type Toggle Clamp

Small Holding Force Latch Type Handle Toggle Clamp With Blue Handle GH-40323B

Manual Quick Release Latch Type Hold Down Handle Toggle Clamp Destaco 323 / GH-40323B

Features:
Quick release, medium holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Railway Vehicle Industry (including subways and light rail vehicles)

1. Body keel welding is used as fixtures for welding molds.
Main application models: 101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.

2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.

3. Welding of door panels is used as positioning bolts and fixtures for welding jigs. Main application models: 11412,12205,10247,225-D,21382,304-C,304-E etc.

4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.

5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.

6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Plastic Products Manufacturing Industry

Plastic products are basically divided into two categories: blow molding and injection molding. At present, no manual toggle clamp has been found in blow molding, while a large number of manual toggle clamps have been used for injection molding products. Even single-machine and single-model "injection molding machines" have begun to replace the old screw rod with 7-head manual toggle clamps or corner cylinders for fixing molds.

Notes:
(1) For the single-machine single-model injection molding machine, manual toggle clamp 7-heads and corner cylinders are widely used to replace the old screw rod nut fixing molds.

(2) In the loop injection molding production line, the manual toggle clamp is widely used as open/close locking mechanism for the upper and lower molds on the molds of the production line.

(3) In the production line of injection molding, the manual toggle clamp is widely used as a locking mechanism in its mold.
Main application models: 10448,302-F,36060,303-E,40341,431 etc.

Automobile Industry

1. Metal furniture - furniture made of metal shapes. Manual toggle clamps are used for fixtures on "welding jigs."
Main application models: 11412,203-F,225-D,302-F,304,305 series etc.

2. Solid wood furniture - that is, furniture made of logs, quick fixtures are used in woodworking machines, such as "profiling woodworking milling machines" and "woodworking chamfering machines". Main application models: 200-W-220-WLH series,21385,225-D etc.

3. For carved furniture, such as "mahogany furniture," manual toggle clamps are used as fixtures on woodworking carving machines.
Main application models: 220-WLH,302-D etc.

4. Oriented strand lumber production - that is, the log is processed into the oriented strand lumber, which is used as a fixture on the "board-sawing machine." Main application models: F clamps.

Note: Plate furniture - furniture made of various plywood, with one or two manual toggle clamps occasionally used.

Note: All products or parts can be used when similar to the above four points regarding the manufacture of materials and production methods (e.g., fitness equipment such as treadmills, musical instruments and other instruments made of solid wood, other carved products, flooring made of oriented strand lumber) and having the characteristics of continuous mass production.

Pull-Action Latching Toggle Clamp

This clamp works similar to the latch on fishing tackle boxes. Its handle is appropriately aligned with the opposing latch. Then, it is pulled back down into the locking position. This is used for closing objects such as mold closures and latching doors. Ask the manufacturer of your choice to help you have a brilliant decision in no time.
Categorized into two types such as U-hook and J-hook, pull action latching toggle clamp is ideal for sealing lids and molds. With its threated adjustments, it becomes adaptable to many applications. Options include stainless steel, carbon, and rubber material

Blue Handle Latch Type Toggle Clamp

163kg Latch Type Toggle Clamp

163kg Blue Toggle Clamp

163kg Solid Wood Blue Handle Latch Type Toggle Clamp Images
