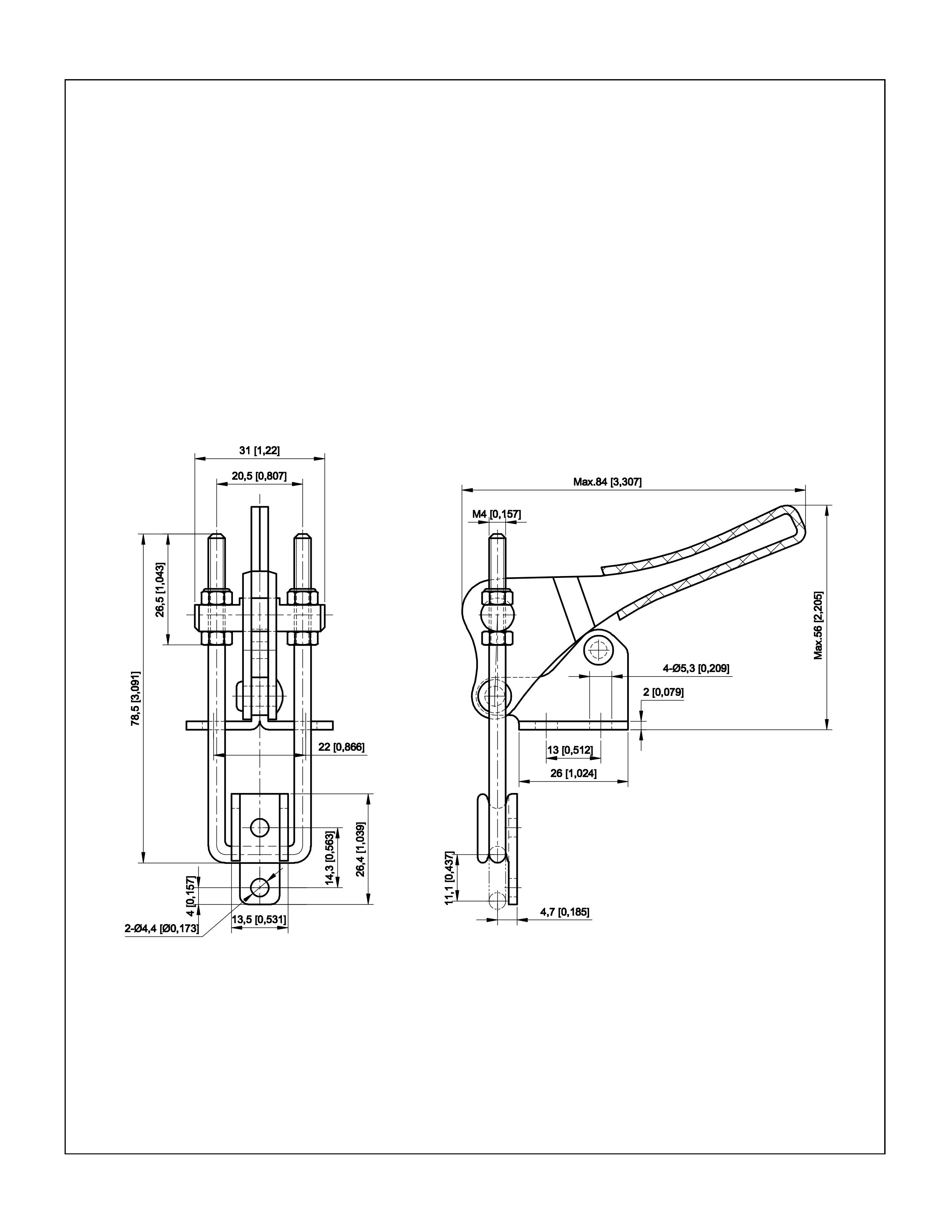

Hold Down Handle 225kg Flanged Latch Toggle Clamp

Adjustable Pull Action Latch Type U-bolt Toggle Clamp Destaco 324 / GH-40324

Manual Latch Type Hold Down Handle U-Bolt Toggle Clamp Destaco 324 / GH-40324

Features:
Pull action, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry

1. Welding of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for welding jigs.
Main application models: 702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.

2. Welding inspection of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for inspecting jigs.
Main application models: 12135,12137,304-C,302-F etc.

3. Stamping of all kinds of vehicle frames, accessories (small sheet metal parts) and sheet metal door panel parts is used as positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 12130,12135,11412,302-F,36020 etc.

4. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.

5. Welding of various automobile roof and side windows is used as fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.

6. Welding of various car seats is used as positioning bolts and fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.

7. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.

8. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.

9. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.

10. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly.
Main application models: 201,201-A,201-B,101-A etc.

11. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.

2) used as end caps for foaming molds. Main application models: 304,305 series.

12. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.

2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.

4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.

13. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.

14. In the production of partially refitted auto bodies, the manual toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.

15. Manual toggle clamps are used for local spot welding during assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.

16. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.

2) For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.

3) For the adhesion of super-luxury bus and minibus interior accessories, manual toggle clamps are used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Engineering Machinery Manufacturing Industry

Such as excavators, loaders, concrete mixers, and pavers; manual toggle clamps are mainly used for welding cab covering metal parts as fixtures and positioning bolts for "welding jigs."
Main application models: 13002-B,36204,30607,12305,22502-B,10247 etc.

Elevator Manufacturing Industry

1. In the production of box elevators, manual toggle clamps are mainly used as fixtures for "welding molds" of box cages.
Main application models: 40324, 101-E,101-J,204-GB series etc.

2. In the production of box elevator doors, manual toggle clamps are mainly used as fixtures for "welding molds."
Main application models: 101-E,10247,25382,21384 etc.

3. In the production of escalators, manual toggle clamps are mainly used for the welding of keels as fixtures.
Main application models: F clamps.

Container Manufacturing Industry

1. In the production of a dry box body, manual toggle clamps are mainly used as positioning bolts and fixtures for welding molds of the skeleton.
Main application models: 303-E,304-H,305-H,30607,101-J,204-G etc.

2. Production of refrigerated container boxes.

3. For the production of the insulating layer for refrigerated containers, manual toggle clamps are used as fixtures on "foaming molds."
Main application models: 36224,36003 etc.
Note: One method of production is to make the inner and outer boxes well and then fill the insulation materials. This method does not require clamps (currently rare).

Working principle: quick clamp based on planar four-bar linkage mechanism in the swing
Mechanical principles to the design, the basic structure is made up of connecting rod, rack
And two-pole mount up to four elements. When the connecting rod between the two hinge points and
Connecting rod hinge points, three points in the same line, body is dead.And its applied mechanics in the dead center of clamp works.
Fixture features: simple structure, high strength, good resistance to abrasion, easyto install, fast spirit, and is safe and reliable,Strong clamping force, greatly improving efficiency.
Applications: widely used in electronic products, the automotive industry, sports equipment,
Aircraft Assembly, pharmaceutical chemistry, crafts and other related areas. Involveworkers needs to be fixed, other
Needs a fixed clamping can finish or work locations can be used.

Flanged Latch Toggle Clamp

225kg Latch Toggle Clamp

Hold Down 225kg Toggle Clamp

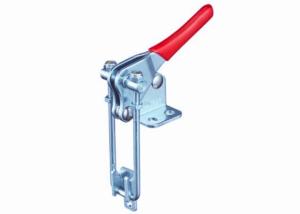

Hold Down Handle 225kg Flanged Latch Toggle Clamp Images
