KAKUTA Big Duty 318kg 636LBS Push Pull Type Toggle Clamp

KAKUTA Big Duty Push Pull Toggle Clamp for Mounting Through Panels FM250 / Destaco 624 / Clamp-Rite 13240CR / GH-36224M

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp Destaco 624 / Clamp-Rite 13240CR / GH-36224M

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry

1. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 36224, 201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
2. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
3. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
4. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
10. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly.
Main application models: 201,201-A,201-B,101-A etc.

Engineering Machinery Manufacturing Industry

Such as excavators, loaders, concrete mixers, and pavers; manual toggle clamps are mainly used for welding cab covering metal parts as fixtures and positioning bolts for "welding jigs." Main application models: 36224M, 13002-B,36204,30607,12305,22502-B,10247 etc.

Elevator Manufacturing Industry

1. In the production of box elevators, manual toggle clamps are mainly used as fixtures for "welding molds" of box cages.
Main application models: 101-E,101-J,204-GB series etc.

2. In the production of box elevator doors, manual toggle clamps are mainly used as fixtures for "welding molds."
Main application models: 101-E,10247,25382,21384 etc.

3. In the production of escalators, manual toggle clamps are mainly used for the welding of keels as fixtures.
Main application models: F clamps.

Container Manufacturing Industry

1. In the production of a dry box body, manual toggle clamps are mainly used as positioning bolts and fixtures for welding molds of the skeleton.
Main application models: 303-E,304-H,305-H,30607,101-J,204-G etc.

2. Production of refrigerated container boxes: similar to point 17-1.

3. For the production of the insulating layer for refrigerated containers, manual toggle clamps are used as fixtures on "foaming molds."
Main application models: 36224,36003 etc.
Note: One method of production is to make the inner and outer boxes well and then fill the insulation materials. This method does not require clamps (currently rare).

636LBS Push Pull Type Toggle Clamp

318kg Push Pull Type Toggle Clamp

KAKUTA Push Pull Type Toggle Clamp

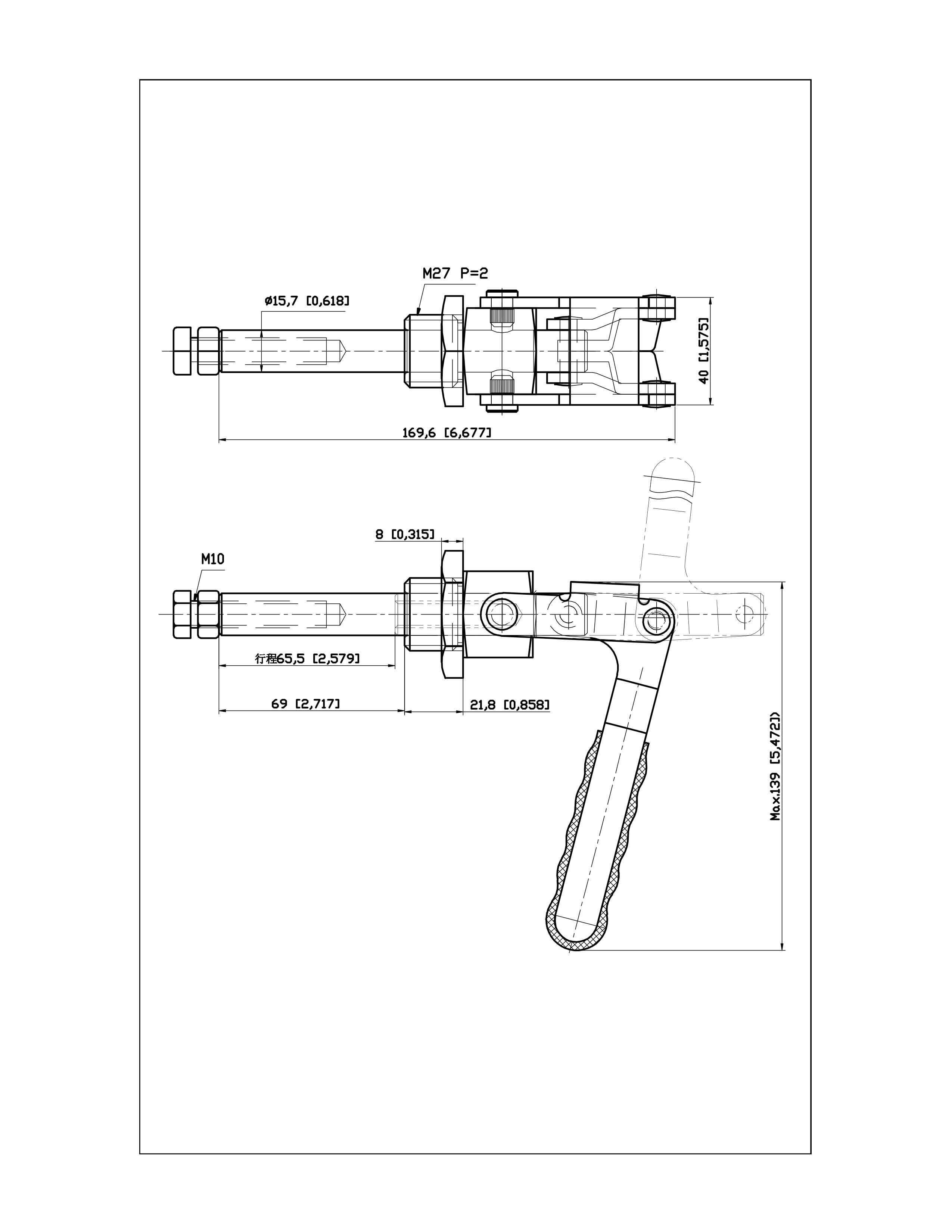

KAKUTA Big Duty 318kg 636LBS Push Pull Type Toggle Clamp Images
