40lbs Small Quickly Holding U Shaped Bar Horizontal Handle Toggle Clamp GH-20400

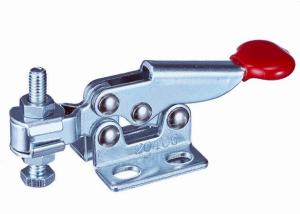

Horizontal Quick Release Hold Down Handle Toggle Clamp GH-20400
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

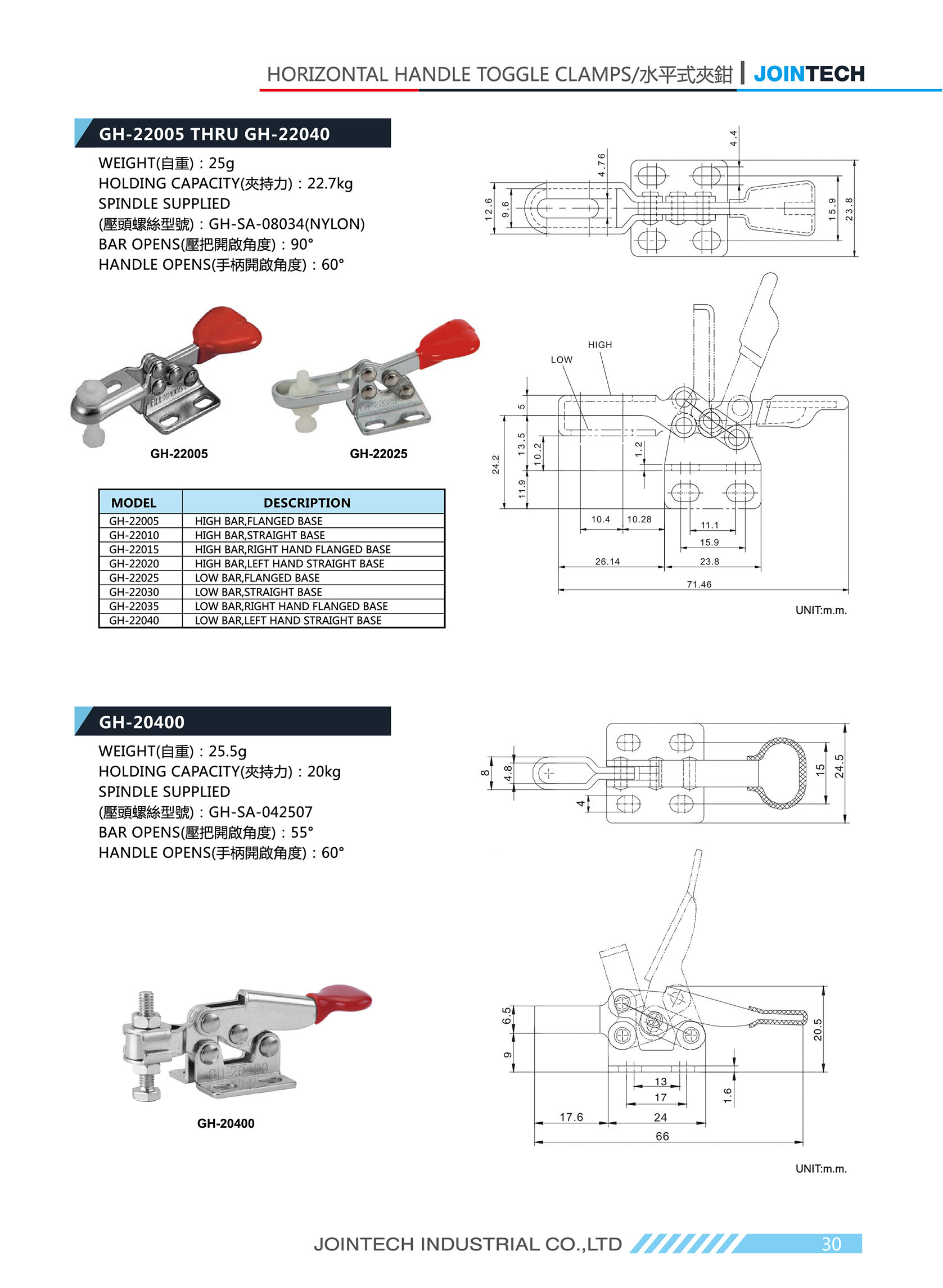

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 26 | 20 | 55 | 60 | GH-SA-042507 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for welding jigs.
Main application models: 20400, 702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for inspecting jigs.
Main application models: 12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small sheet metal parts) and sheet metal door panel parts is used as positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 12130,12135,11412,302-F,36020 etc.
4. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
Electronics Industry
1. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
2. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.
3. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
4. Electronic toys, game consoles and IC cards.
5. The production of weighing sensors uses manual toggle clamps, with process locations unknown.
6. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.
7. In manufacturing batteries (mainly cell phone batteries or stacked cell battery blocks like cell phone batteries, such as laptop batteries; other batteries will also be used, but in small quantities), manual toggle clamps are used in:
(1) the semi-finished electric cores produced are assembled into battery blocks and used in the "assembly fixture" on the assembly line,
Main application models: 20400, 101-A,102-B,22100,201-B,36204 etc.
(2) the comprehensive performance of the battery block is tested and used in the "test jig."
Main application models: 101-A,201,20400,20800 etc.
8. In the manufacture of mobile phones (or similar products), manual toggle clamps are used in the:
(1) production of circuit boards.
(2) mobile phone comprehensive performance test. When the mobile phone is assembled without batteries, the comprehensive performance of the mobile phone is tested, with the fixture used in the "test jig."
Main application models: 20400, 101-A,101-B.
